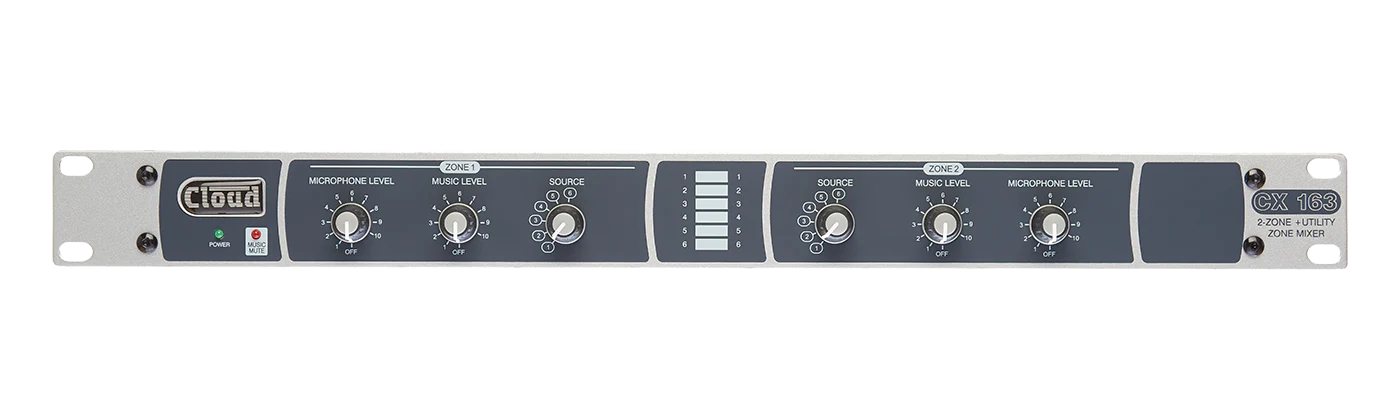

Cloud CX-163 2-Zone Stereo Mixer
Cloud CX163 Zone Mixer
The Cloud CX163 is a versatile 2-zone stereo mixer with a mono utility output, designed for applications in leisure, licensed, and retail venues. It accommodates six stereo line-level inputs and one microphone input, offering flexible audio control across multiple zones.
Key Features:
- Dual Stereo Zones with Mono Utility Output: Manage two stereo zones and an additional mono utility zone, ideal for areas like restrooms or foyers.
- Configurable Outputs: Both stereo zones can be configured to run as mono, providing adaptability to various audio setups.
- Multiple Inputs: Six stereo line inputs and one microphone input with paging capabilities for each zone.
- Priority and Paging Functions: Line 6 priority over other input sources in Zone 1 and microphone access contacts for paging to all three zones.
- Remote Control Capability: Music level can be controlled remotely using the RL-1 remote control in each zone.
- Audio Enhancements: Features a 100Hz high-pass filter on all microphone inputs and a two-band microphone EQ for optimal sound quality.
Technical Specifications:
| Specification | Details |
|---|---|
| Frequency Response | 20Hz – 22kHz, ±0.5dB (line); -3dB at 100Hz filter, ±0.5dB at 20kHz (mic) |
| Distortion | Less than 0.05% typical at 20Hz – 20kHz (line); less than 0.05% at 20Hz to 22kHz (mic) |
| Sensitivity | 100mV – 1.5V, -17.8dBu - +6dBu (line) |
| Headroom | Over 20dB (line/mic) |
| Gain Control | 24dB (line); 10dB - 50dB (mic) |
| Output Level | 0dBu |
| Maximum Output Level | +20dBu |
| Power Input | 85-253V AC, 50/60Hz |
| Power Consumption | 42.9 mA at 240V |
| Dimensions (W x H x D) | 482.6 x 44 x 152.5mm |
| Weight | 2.10kg |
The Cloud CX163 Zone Mixer offers comprehensive control and flexibility, making it an ideal choice for managing audio distribution in various commercial environments.
