Bose Professional FreeSpace 3-II Flush Mt Bass W

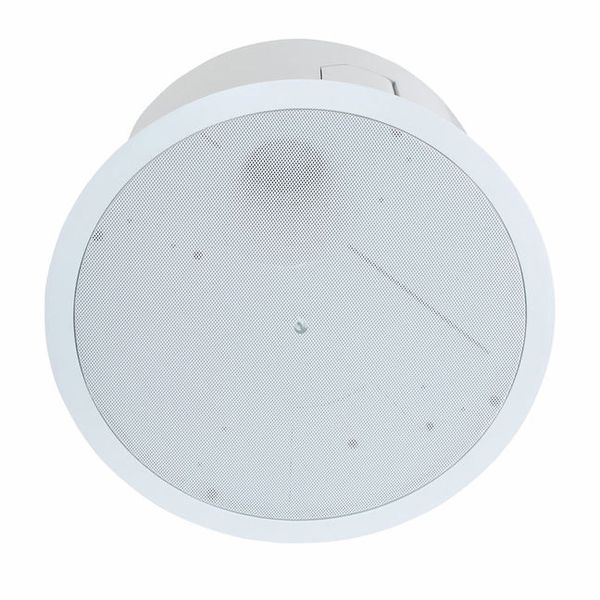

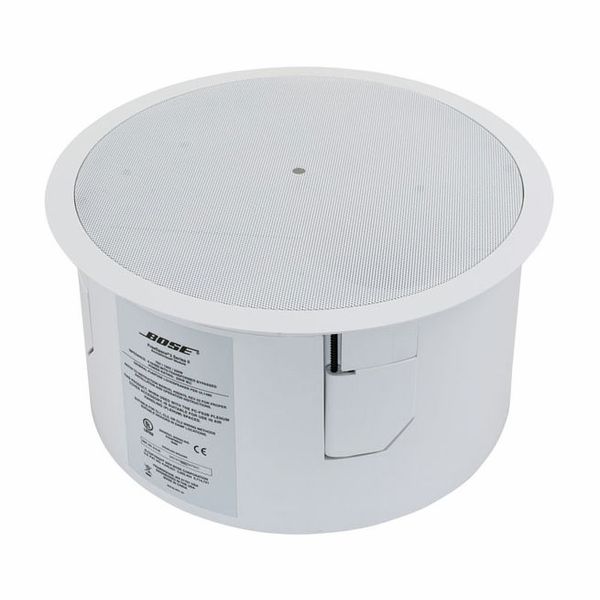

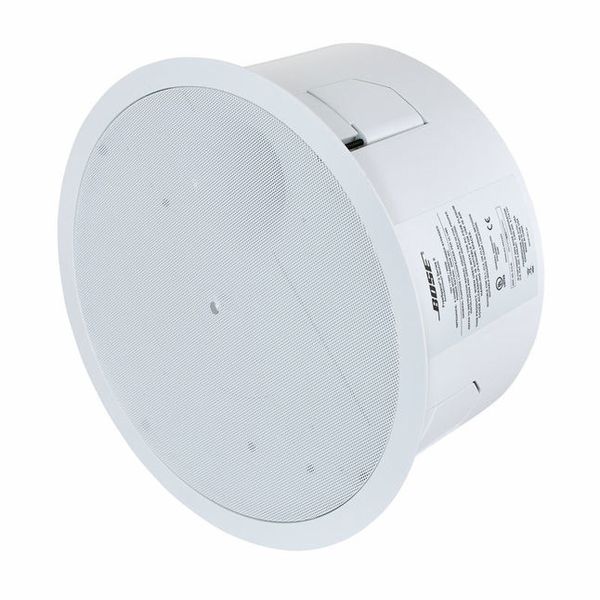

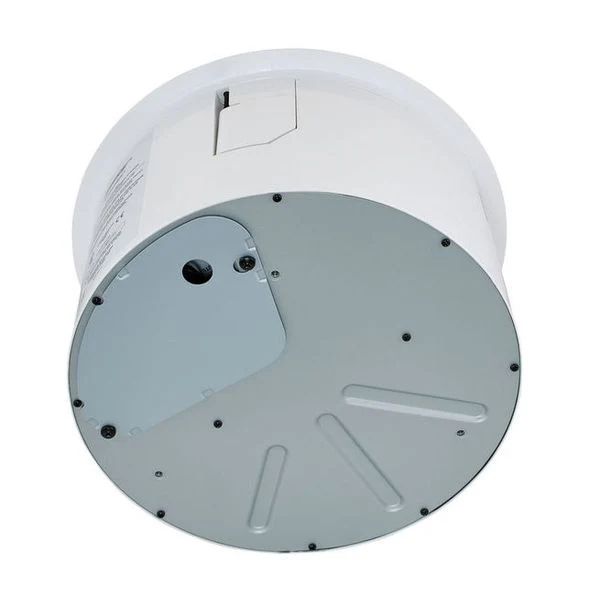

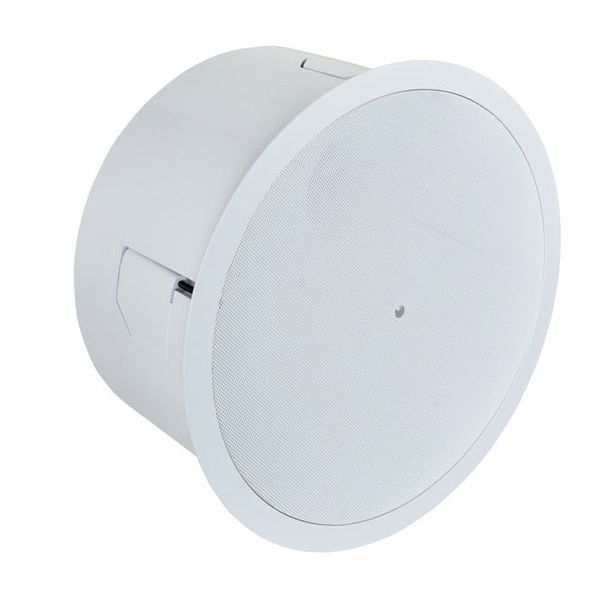

Bose Professional FreeSpace 3 Series II Flush-Mount Bass Module
The Bose FreeSpace 3 Series II Flush-Mount Bass Module is a high-performance low-frequency loudspeaker designed to deliver deep, non-localized bass down to 40 Hz without audible distortion. Ideal for installed applications such as retail spaces, restaurants, hotels, and conference areas, it integrates seamlessly with FreeSpace 3 satellite speakers to create a full-range audio system.
Key Features:
- Deep Bass Performance: 5.25-inch woofer delivers extended low-frequency response down to 40 Hz.
- Flexible Mounting: Supports flush, ceiling, pendant, and wall-mount installations.
- Modular System: Allows connection of multiple bass modules and up to four satellite speakers per module.
- Plenum Rated: Suitable for air handling spaces with optional plenum cover.
- Selectable Power Modes: Supports 70/100V or low impedance with transformer tap accessible under the grille.
Technical Specifications:
| Specification | Details |
|---|---|
| Woofer Size | 5.25 inches (133 mm) |
| Frequency Range | 40 Hz – 315 Hz (-10 dB) |
| Frequency Response | 50 Hz – 230 Hz (±3 dB) |
| Power Handling | 200 W continuous, 800 W peak |
| Impedance | 6 ohms |
| Maximum SPL | 108 dB SPL (peak) |
| Inputs | 1 x Barrier Strip |
| Dimensions | 15.4" (391 mm) outer flange diameter; 7.5" (190 mm) height |
| Weight | 14 lb (6.36 kg) |
| Enclosure Material | ABS |
Deliver clear, impactful bass to your commercial audio installation with the Bose FreeSpace 3 Series II – engineered for reliability, performance, and seamless system integration.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Bose Professional FreeSpace 3 Series II Flush-Mount Bass Module
The Bose FreeSpace 3 Series II Flush-Mount Bass Module is a high-performance low-frequency loudspeaker designed to deliver deep, non-localized bass down to 40 Hz without audible distortion. Ideal for installed applications such as retail spaces, restaurants, hotels, and conference areas, it integrates seamlessly with FreeSpace 3 satellite speakers to create a full-range audio system.
Key Features:
- Deep Bass Performance: 5.25-inch woofer delivers extended low-frequency response down to 40 Hz.
- Flexible Mounting: Supports flush, ceiling, pendant, and wall-mount installations.
- Modular System: Allows connection of multiple bass modules and up to four satellite speakers per module.
- Plenum Rated: Suitable for air handling spaces with optional plenum cover.
- Selectable Power Modes: Supports 70/100V or low impedance with transformer tap accessible under the grille.
Technical Specifications:
| Specification | Details |
|---|---|
| Woofer Size | 5.25 inches (133 mm) |
| Frequency Range | 40 Hz – 315 Hz (-10 dB) |
| Frequency Response | 50 Hz – 230 Hz (±3 dB) |
| Power Handling | 200 W continuous, 800 W peak |
| Impedance | 6 ohms |
| Maximum SPL | 108 dB SPL (peak) |
| Inputs | 1 x Barrier Strip |
| Dimensions | 15.4" (391 mm) outer flange diameter; 7.5" (190 mm) height |
| Weight | 14 lb (6.36 kg) |
| Enclosure Material | ABS |
Deliver clear, impactful bass to your commercial audio installation with the Bose FreeSpace 3 Series II – engineered for reliability, performance, and seamless system integration.
