Audio-Technica AT-VM95SP/H Cartridge & Headshell Combo

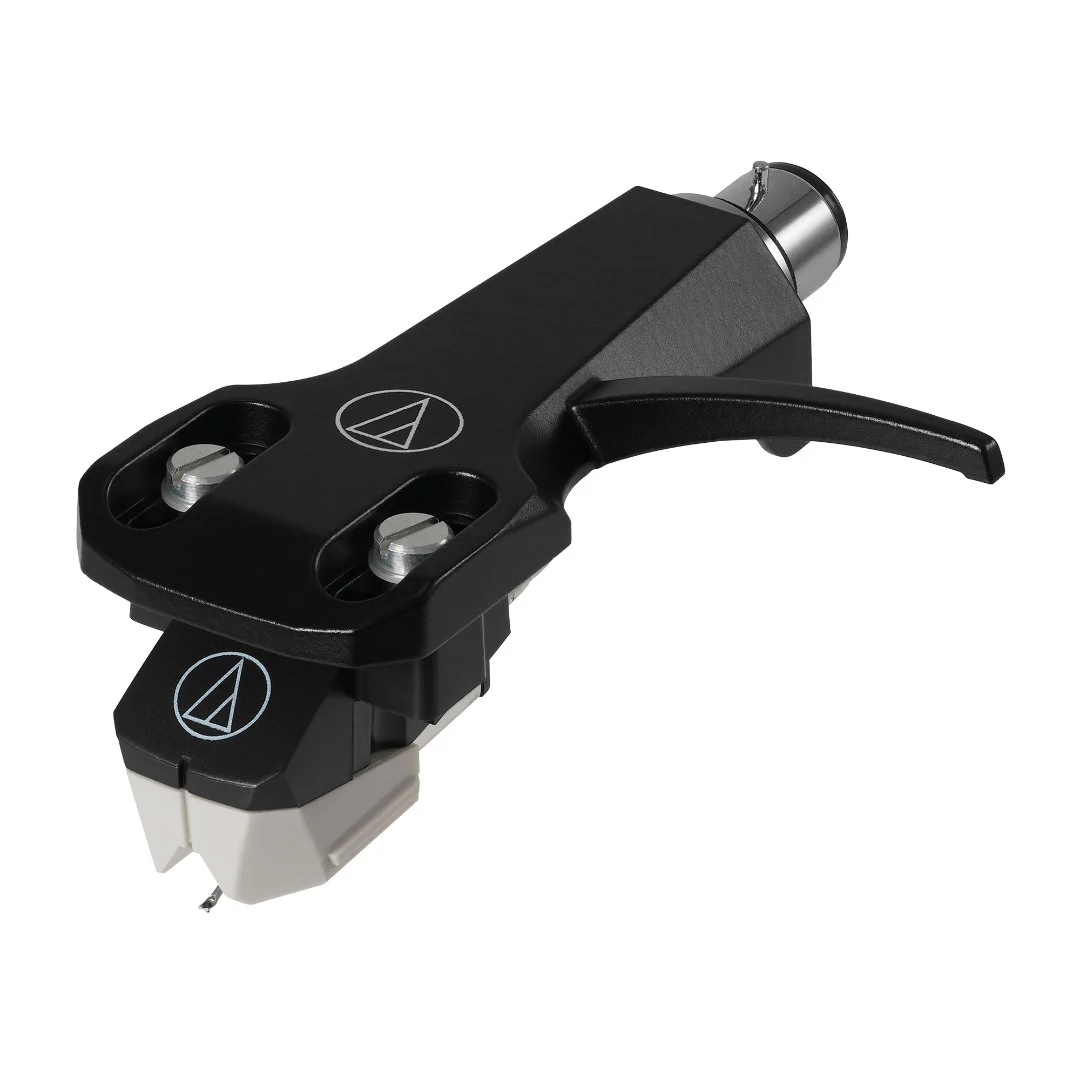

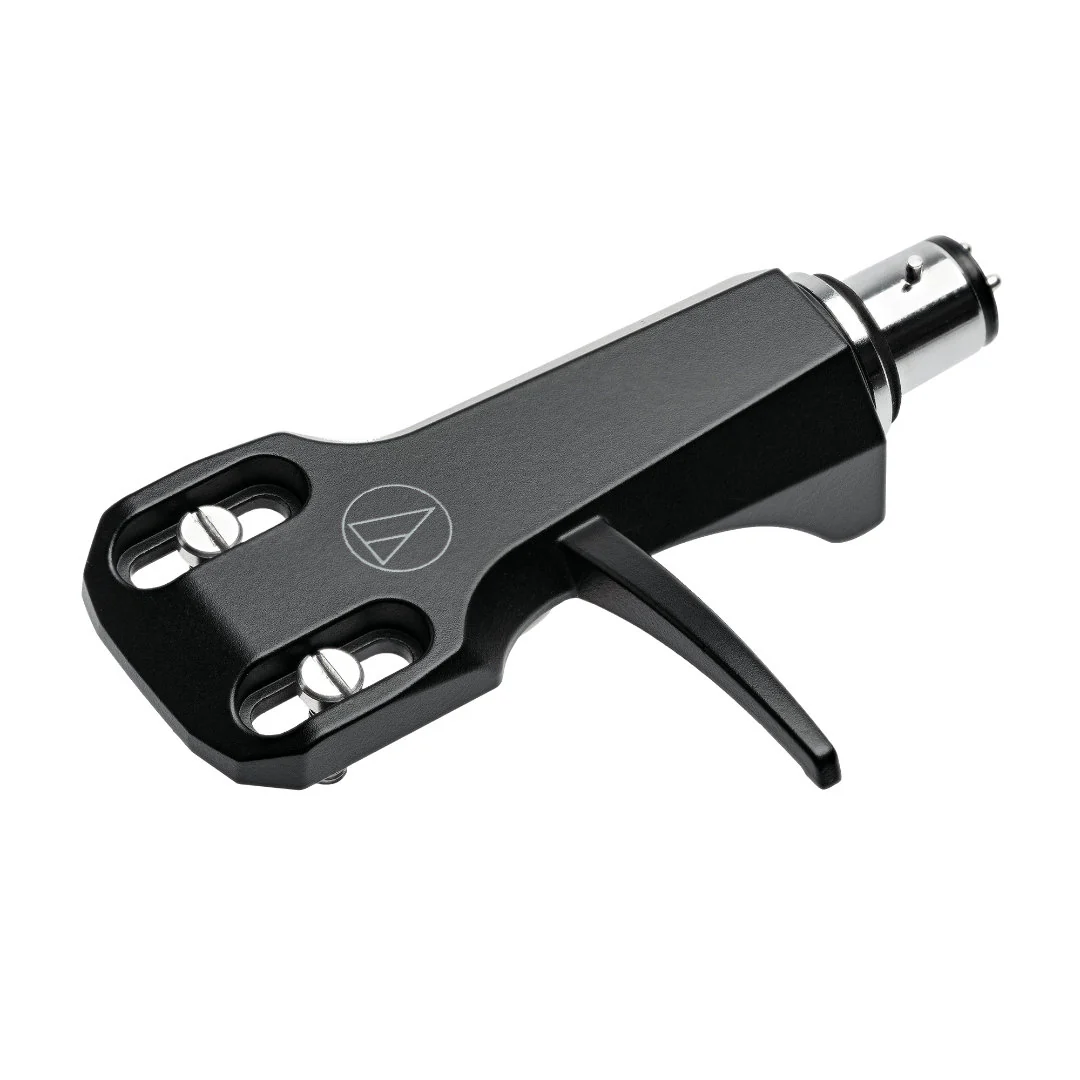

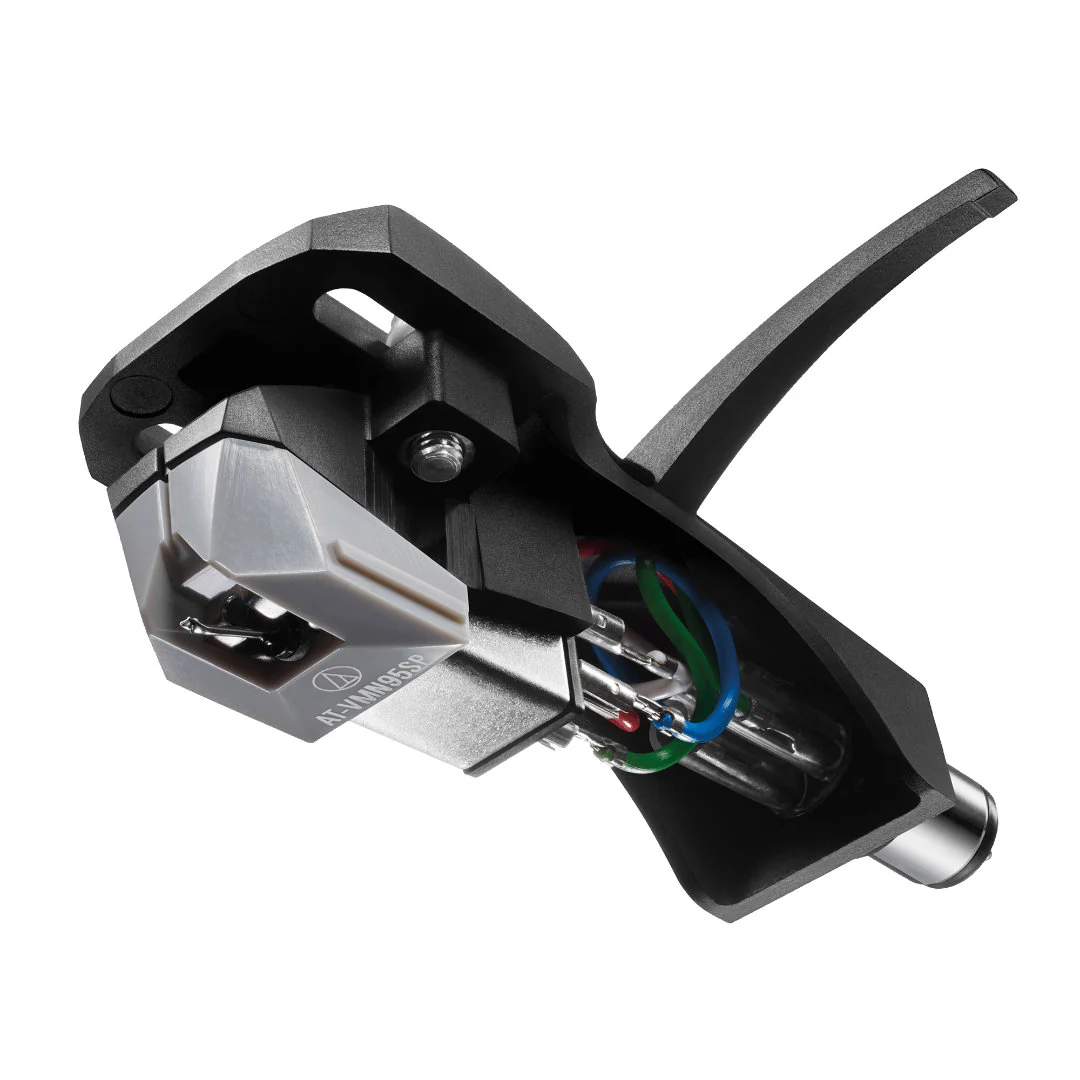

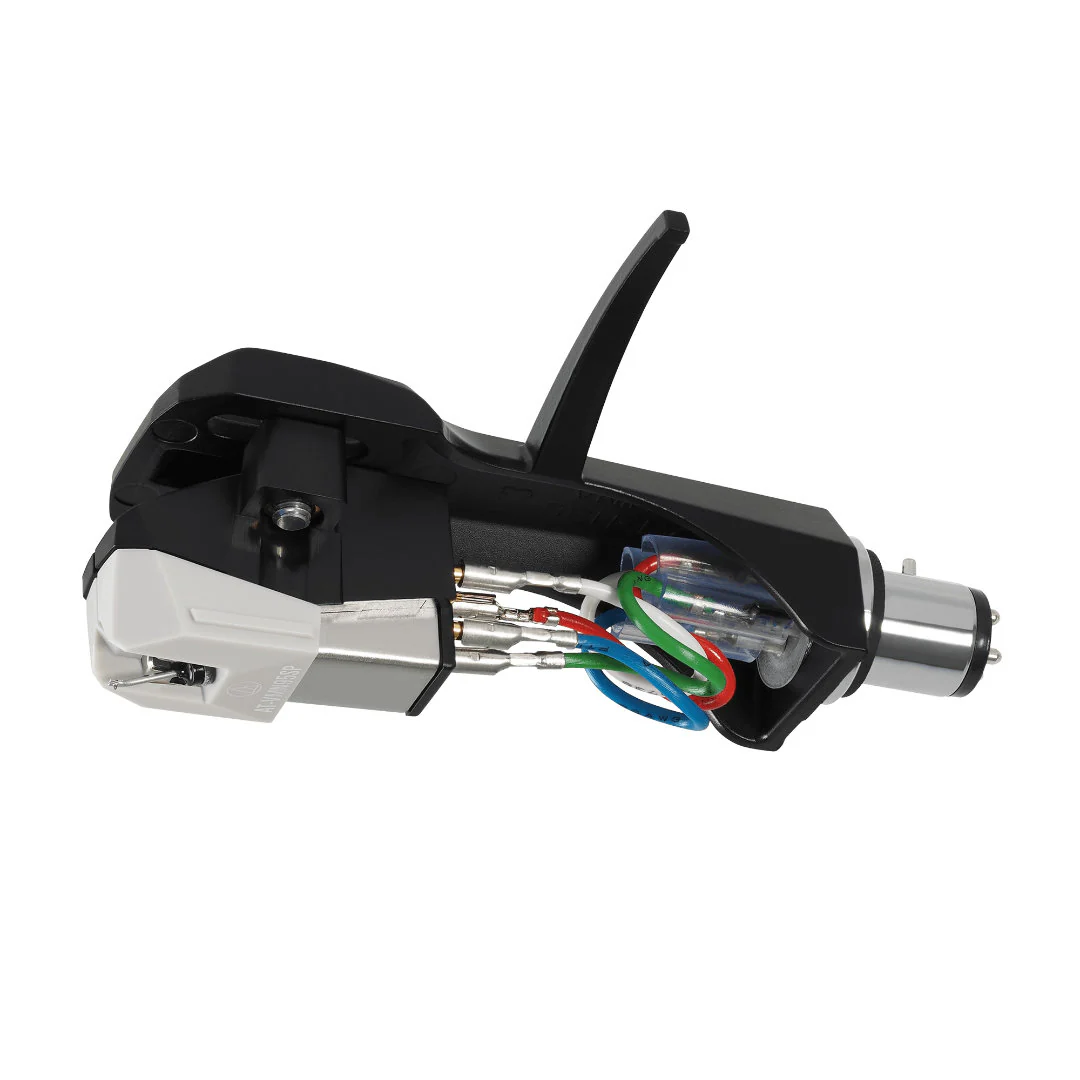

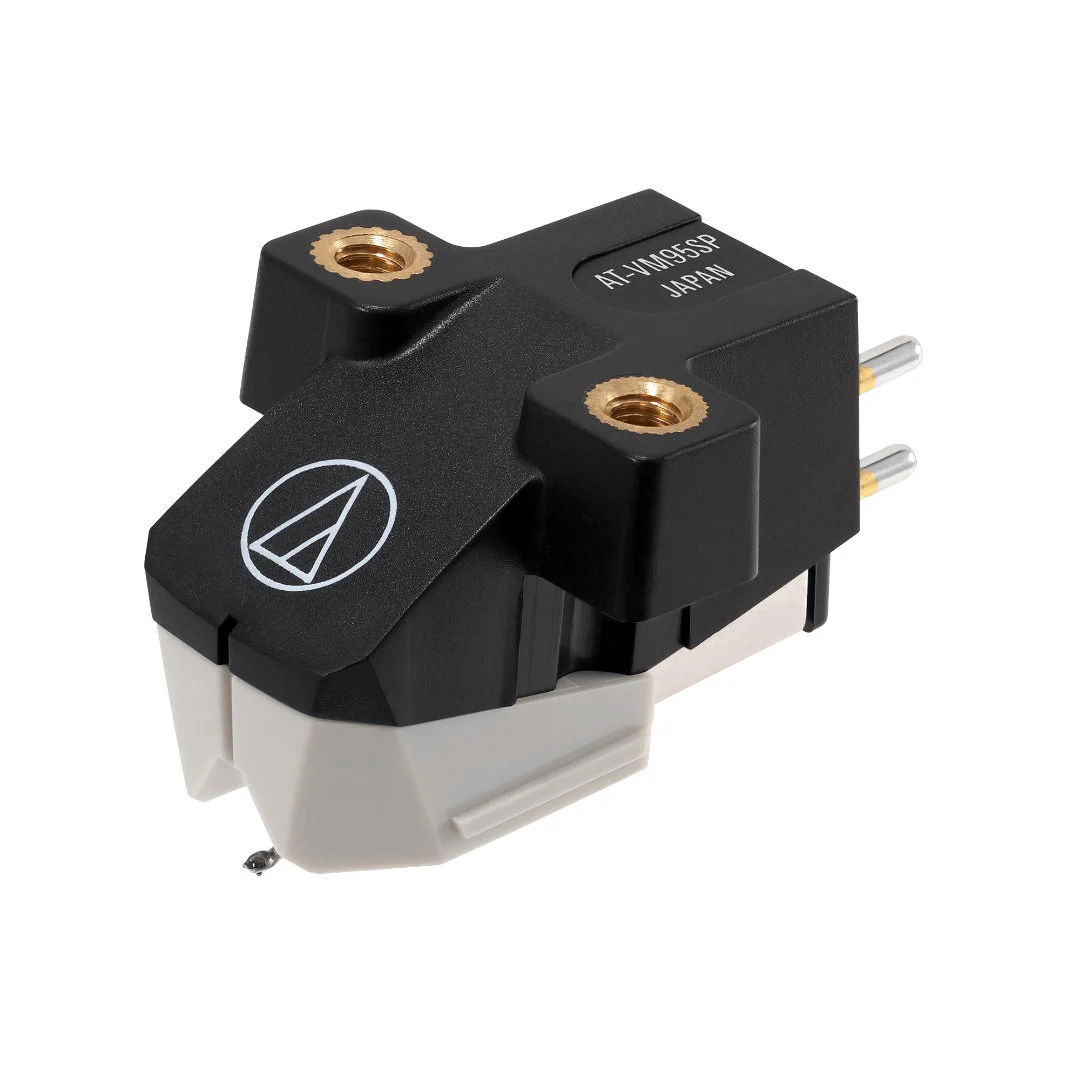

The AT-VM95SP/H combo kit includes the AT-VM95SP dual moving magnet cartridge premounted on the AT-HS6BK headshell.

Specifications:

• Frequency Response: 20 - 20,000 Hz
• Vertical Tracking Angle: 23°
• Vertical Tracking Force: 4.5 to 5.5g (5.0g standard)
• Stylus Construction: Bonded Round Shank
• Recommended Load Impedance: 47,000 Ω
• Coil Impedance: 3.3 kΩ (1 kHz)
• DC Resistance: 485 Ω
• Coil Inductance: 550 mH (1 kHz)
• Output Voltage: 2.7 mV (@ 1 kHz, 5 cm/sec)
• Output Channel Balance: 1.5 dB (1 kHz)
• Stylus Shape: SP 3 mil Conical Bonded
• Cantilever: Aluminium Pipe
• Static Compliance: 12 x 10⁻⁶ cm/dyne
• Dynamic Compliance: 2 x 10⁻⁶ cm/dyne (100 Hz)
• Mounting: 1/2” centres
• Dimensions: 21.2 × 21.4 × 62.4 mm (H x W x D)
• Model: AT-VM95SP/H
• Recommended Load Capacitance: 100-200 pF
• Replacement Stylus: AT-VMN95SP
• Stylus Size: 3 mil
• Type: VM Stereo Dual Magnet
• Weight: 15.5 g
• Wire Used for Coil: T.P. Copper
